Our Product Line

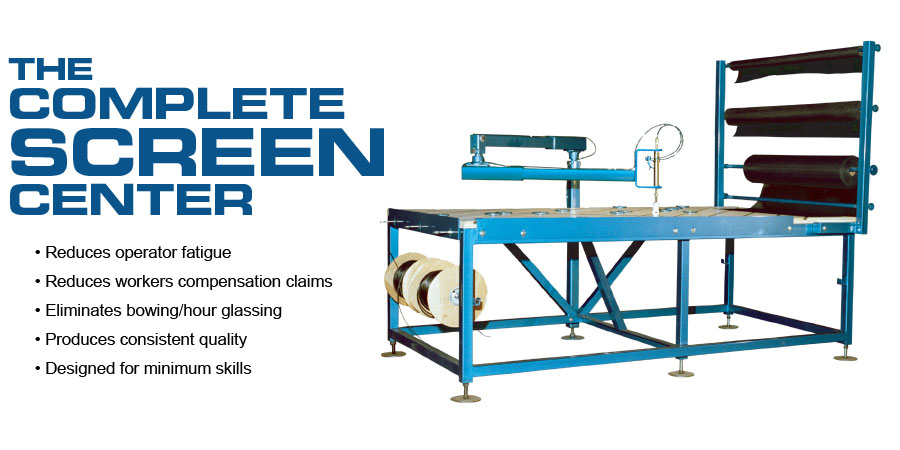

The Complete Screen Center || New Manual Screen Tables || Parts Catalog


Model S4282 Model S4894 Model S5494 Model S6094 Model S60108 Model S60120
42"W x 82"L 48"W x 94"L 54"W x 94"L 60"W x 94"L 60"W x 108"L 60"W x 120"L
Delrin Hold Down Discs Included
12 14 14 14 20 24


Custom sizes and configurations are available
All models are complete with AA54 and screen racks

Benefits

  • New Employees Trained Quickly
  • Designed for Minimum Skills
  • Produces Consistent Quality
  • Eliminates Bowing
  • Eliminates Hour Glassing
  • Reduces Operator Fatigue
  • Reduces Risk of Carpal Tunnel Syndrome
  • Reduces Workers Compensation Claims

Technical Data

  • Table height adjustable 31” - 40”
  • Weight approximately 700 lbs.
  • Standard pneumatic connections
  • Custom sizes or configurations available

Standard Features

  • Adjustable screen spline insertion wheel lowering speed
  • Adjustable screen spline insertion wheel height
  • Adjustable Pressure for screen spline insertion
  • Table heavy gauge all welded steel construction
  • Galvanized steel hold down tracks
  • Working surface Dura-Top high pressure polyethelyne
  • Screen cloth rack - 3 roll capacity
  • Spline rack - 3 roll capacity
  • High quality powder coated paint finish
  • Includes 4 insertion wheels
  • Articulating Arm

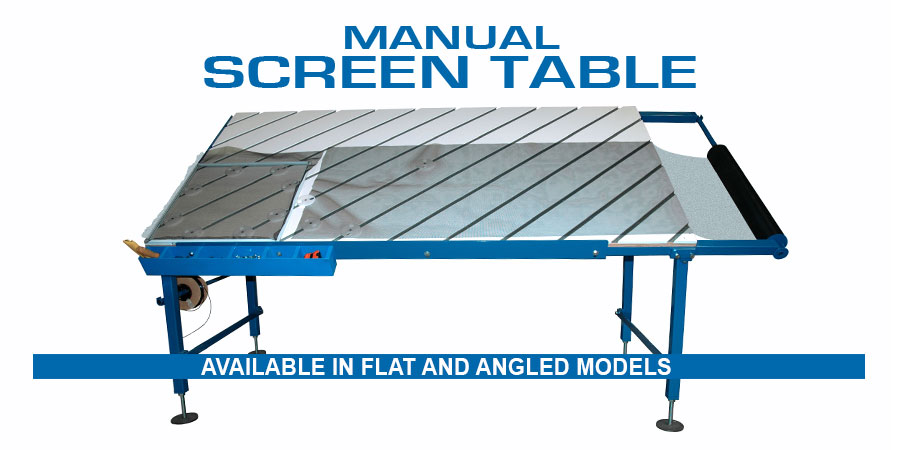

Model M4894 Model MA4894
48"W x 94"L
FLAT
48"W x 94"L
ANGLED


Both Tables Unclude:

  • 12 Hold Down Discs
  • Easy Assembly - 8 Bolts
  • Paint - Industrial Powder Coat

Model MA4894 Only

  • Convenient Parts Tray Located on the Front for Optimal Ease and Accessability to your Parts and Tools.


Features:

  • 48" x 94" Work Area
  • Dura Top with Galvanized Steel Tracks
  • 6" Spacing Between Tracks
  • Spline Rack Holds up to 5 Rolls
  • Optional Second Screen Roll


For additional information and pricing visit our contact page.



screen center sales

14 SEPTEMBER CRES.
London ON, N6K 4E3
Phone: 519-472-0080
Fax: 519-472-5494
Email: info@screencentersales.com
